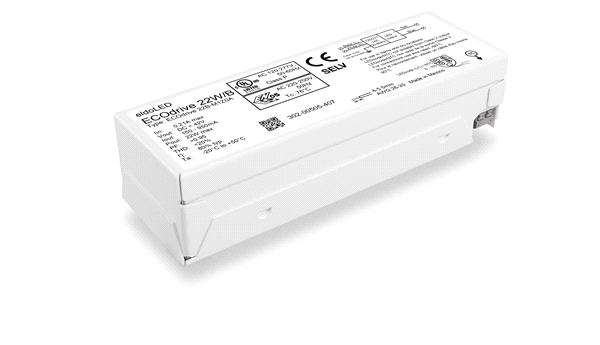

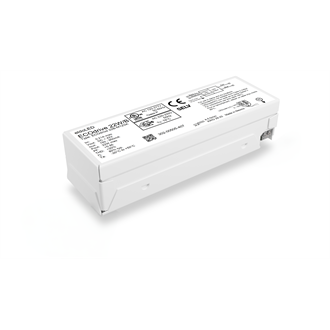

ECOdrive 22W Indoor Compact Small Form Factor

22W Compact Small Form Factor Drivers for 0-10V, LEDcode, and DALI-2 applications with dimming to 1%.

By eldoLED

  • Overview
  • Specifications
Read More
Read Less
Fixture Wattage 22
Product Type LED Driver
Series ECODRIVE
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ECOdrive 22/B Small Form Factor ECOdrive 22/B 22-Watt Small Form Factor Drivers with bottom feed connection 11/15/2023 View
    SPEC SHEET ECOdrive 22/S Small Form Factor ECOdrive 22/S 22-Watt Small Form Factor Drivers with side feed connection 11/15/2023 View
    SPEC SHEET SFF LED Driver Family Sell Sheet Family Datasheet: Small Form Factor LED Driver 1/31/2024 View
  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model 22W SFF Bottom Entry (.igs file) 22W SFF Bottom Entry (.igs file) 11/27/2023
    3D Model 22W SFF Bottom Entry (.step file) 22W SFF Bottom Entry (.step file) 11/27/2023
    3D Model 22W SFF Side Entry - No Flange (.igs) 22W SFF Side Entry - No Flange (.igs file) 11/27/2023
    3D Model 22W SFF Side Entry - No Flange (.step) 22W SFF Side Entry - No Flange (.step file) 11/27/2023
    3D Model 22W SFF Side Entry - w/Flange (.igs file) 22W SFF Side Entry - w/Flange (.igs file) 11/27/2023
    3D Model 22W SFF Side Entry - w/Flange (.step file) 22W SFF Side Entry - w/Flange (.step file) 11/27/2023
    Certification Document UL Listed_Class P_Certification UL Listed/Class P certification for EC 12W/B, S; EC 22W/B, S; SL 12W/B, S; SL 22W/B, S 1/15/2024 View
